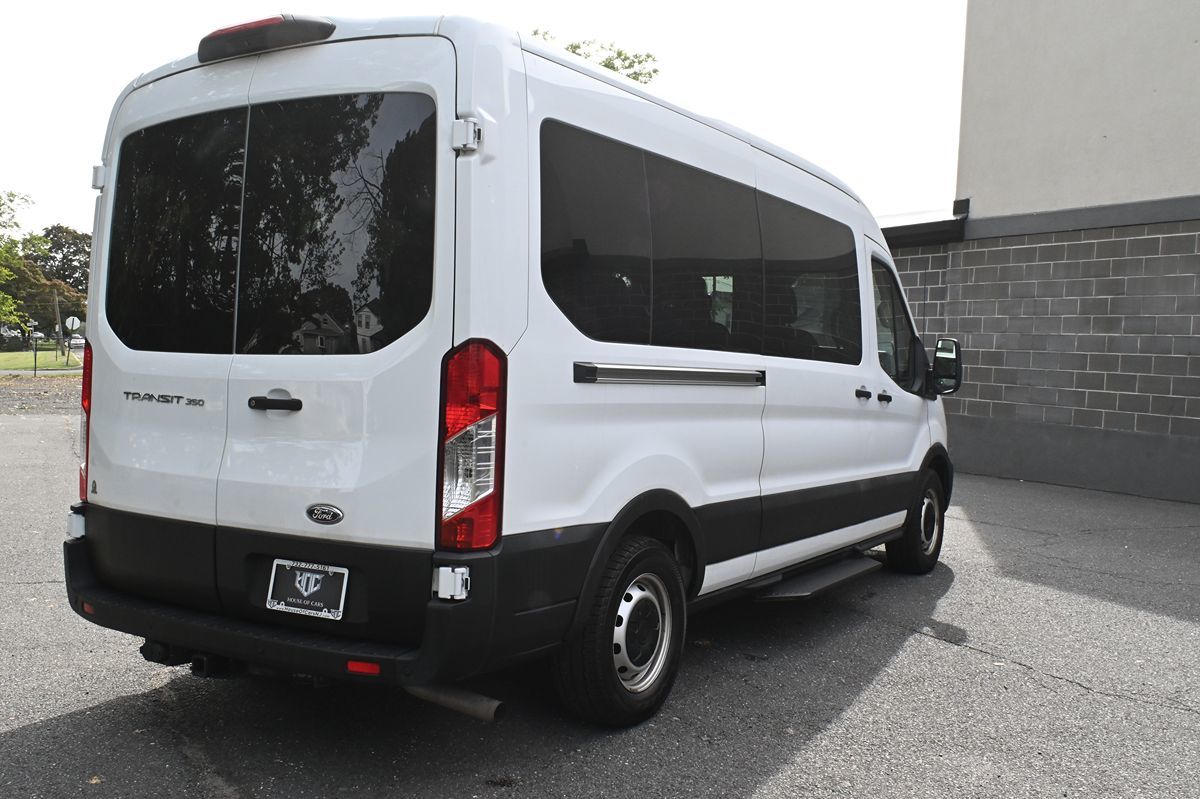

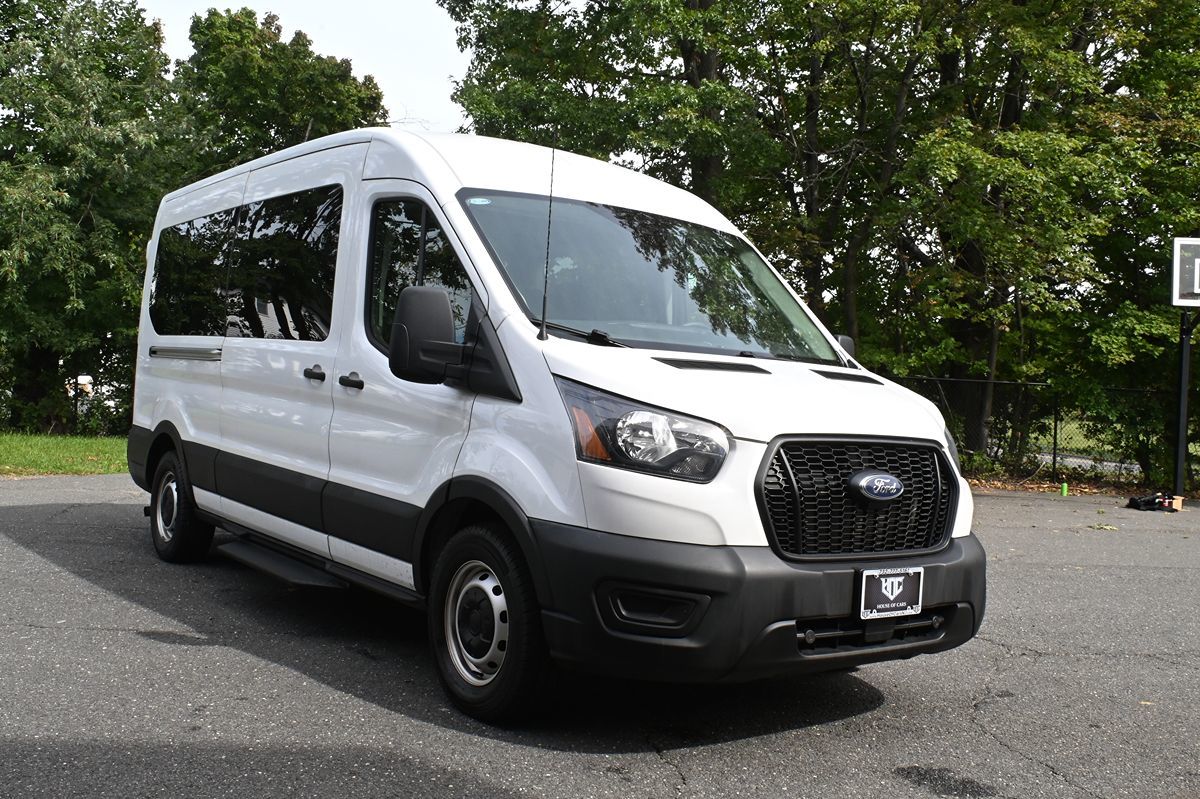

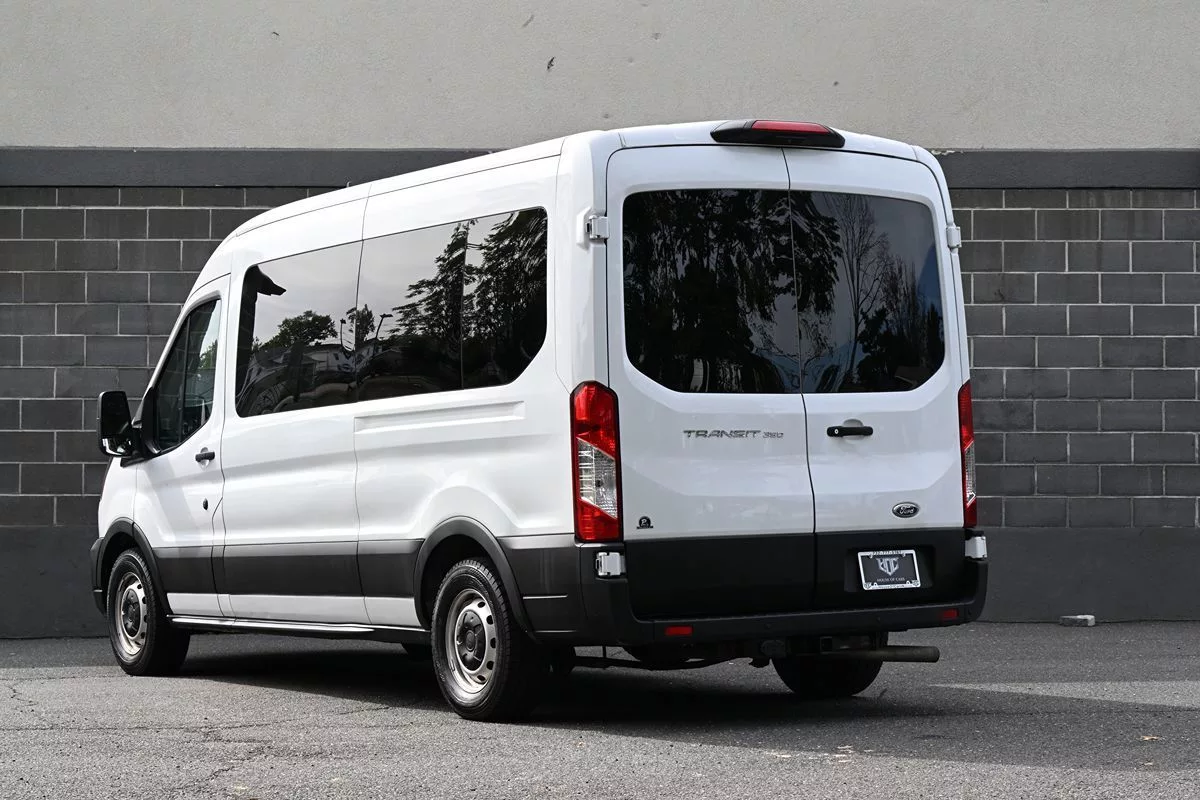

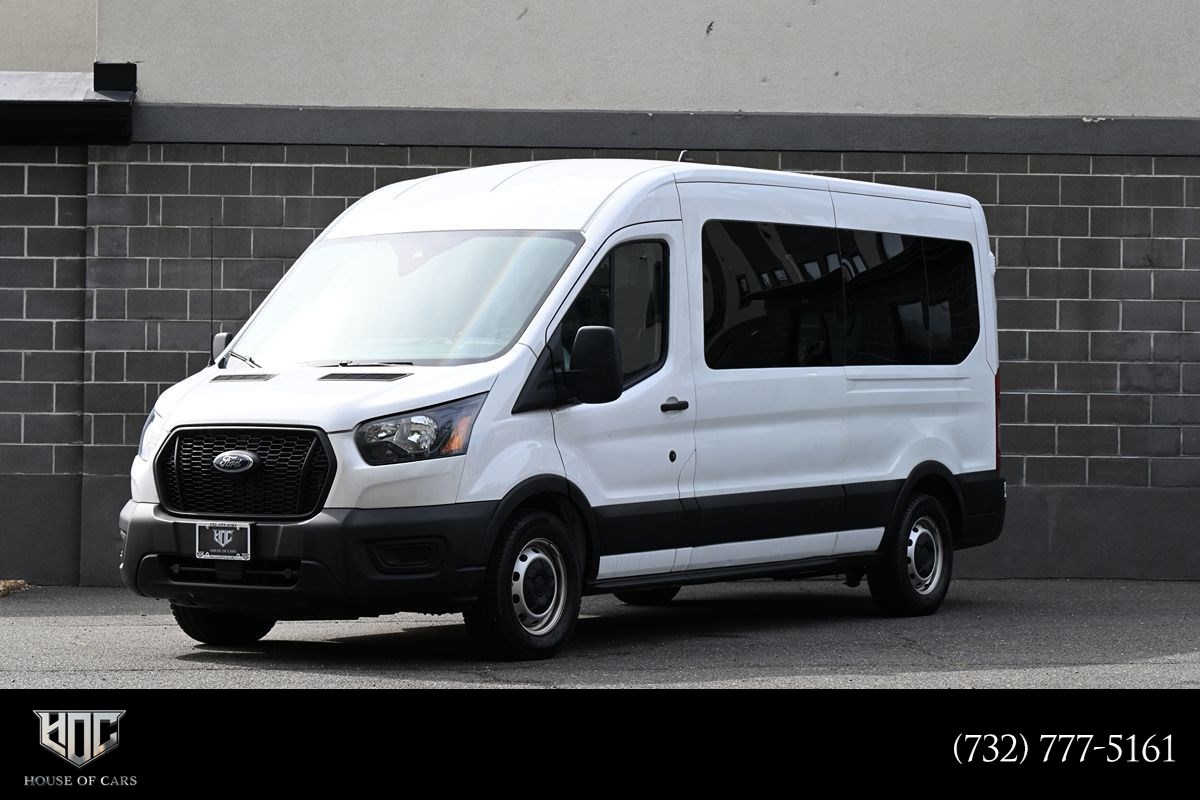

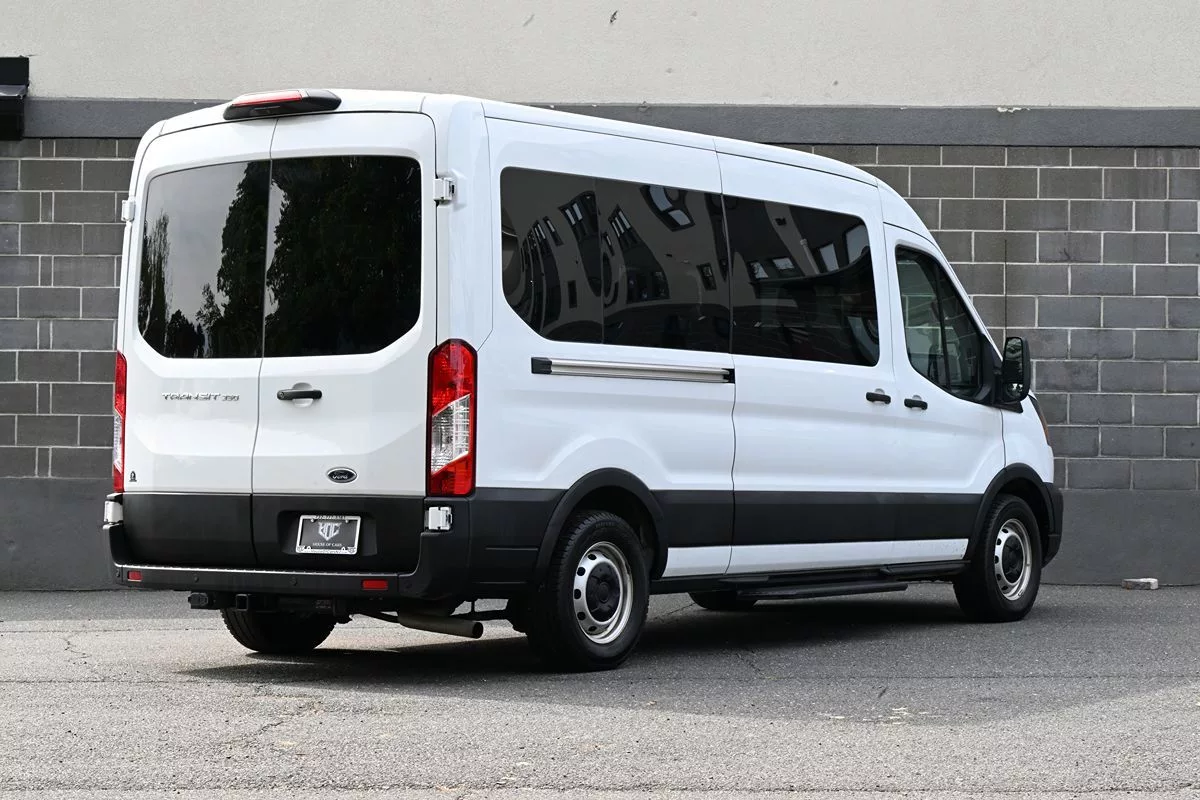

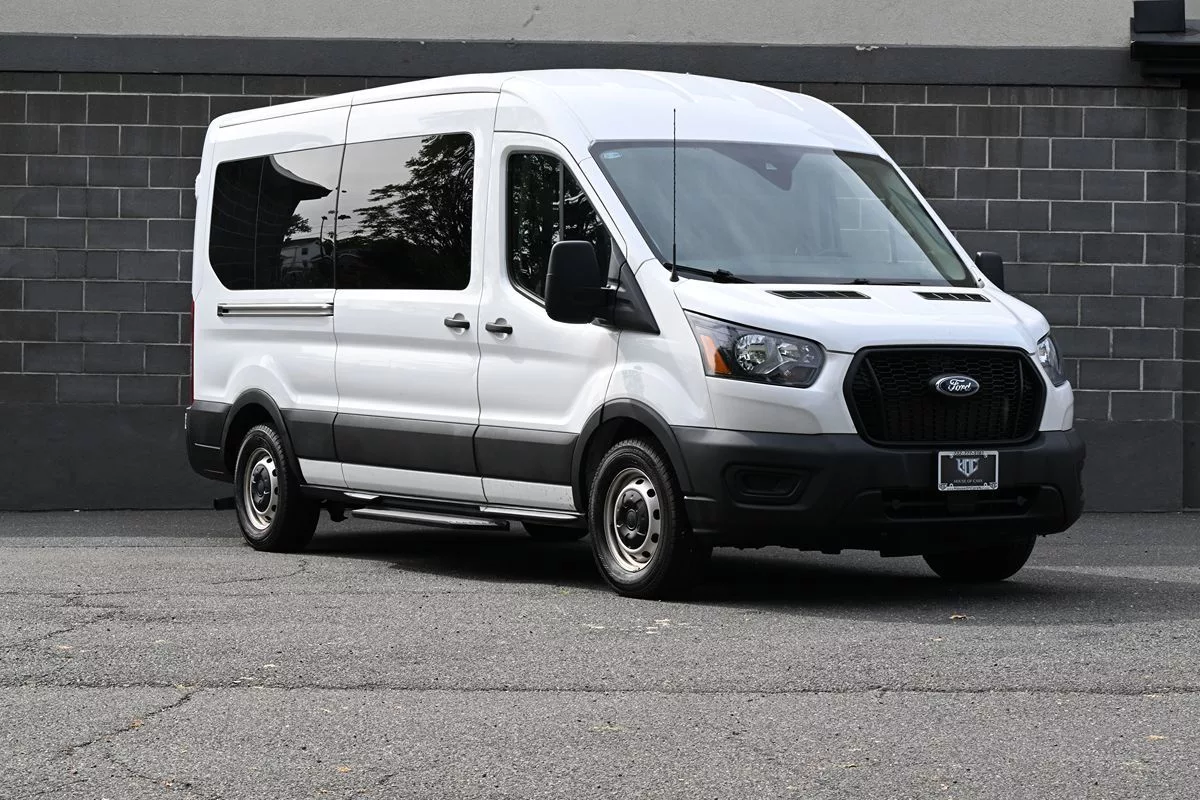

2023 Ford Transit-350 Passenger XL, medium roof, 148-inch wheelbase, rear-wheel drive.

VIN: 1FBAX2C88PKB04641

• Make: Ford
• Model: Transit
• Model year: 2023
• Body: Passenger van
• Series: X2C
• Engine: 3.5L V6 gasoline
• Drive: Rear-wheel drive
• Transmission: 10-speed automatic
• Assembly: Kansas City Assembly Plant, Missouri
• VIN serial: B04641

• Powertrain

  3.5L PFDI V6 Flex-Fuel

  The standard engine for the X2C configuration was Ford's naturally aspirated 3.5-liter PFDI V6.

  • Displacement: 3.5L / 213.6 cu. in.
  • Configuration: V6
  • Fuel: Gasoline / E85 Flex-Fuel
  • Horsepower: 275 hp @ 6,250 rpm
  • Torque: 260 lb-ft @ 4,000 rpm
  • DOHC
  • 24 valves
  • Variable valve timing
  • Port fuel injection
  • Auto start/stop

  The 2023 X2C order documentation lists the 3.5L PFDI V6 Flex-Fuel as the standard engine; the published specifications give 275 hp and 260 lb-ft.

  Transmission

  Ford 10R80 10-speed automatic

  • 10 forward speeds
  • SelectShift capability
  • Overdrive
  • Auxiliary transmission oil cooler
  • Electronically controlled

  The 10-speed automatic was standard on this configuration.

  Drivetrain

  RWD — rear-wheel drive

  The X2C code specifically denotes the RWD version. AWD was separately coded X9C.

  Axle

  Standard X2C configuration:

  3.73:1 open/non-limited-slip rear axle

  Ford also offered 3.73 limited-slip and 4.10 limited-slip configurations, but those are options and cannot be established from this VIN alone without the factory order/build record.

  ---

  Chassis / capacity

  GVWR

  9,250 lb

  This is the standard GVWR for the X2C configuration.

  Payload

  Published specifications for the RWD 350 Medium Roof put maximum/standard payload around:

  3,097 lb

  Actual payload for this particular van depends on its exact seating configuration, equipment and factory-installed options.

  Curb weight

  Approximately 6,152 lb for the standard XL Medium Roof configuration.

  GCWR / towing

  Ford's towing guide shows the RWD Passenger Van with the 3.5L PFDI, 3.73 axle and 148-inch wheelbase as capable of approximately:

  4,100 lb maximum trailer weight — medium roof

  with a 10,800-lb GCWR in the applicable 350/148 configuration.

  So I would use 4,100 lb rather than the generic 4,500-lb figure sometimes shown by consumer specification sites for this exact configuration.

  ---

  Dimensions

  148-inch wheelbase / medium roof

  • Overall length: 235.5 in.
  • Wheelbase: approximately 148 in.
  • Width without mirrors: 81.3 in.
  • Width with mirrors: 97.4 in.
  • Height: approximately 99.2 in.
  • Ground clearance: approximately 6 in.
  • Fuel tank: approximately 25 gal according to Edmunds' configuration data
  • Passenger-van cargo capacity with seats installed: approximately 72.8 cu. ft.
  • Maximum cargo volume with seats removed/folded varies by seating configuration.

  • Standard XL equipment

    The 2023 Passenger XL included equipment such as:

    Exterior

    • Black front bumper
    • Black exterior trim
    • Power-adjustable/heated exterior mirrors
    • Passenger-side sliding door
    • Rear cargo/passenger doors
    • Tinted/privacy glass depending on configuration
    • Halogen headlamps
    • 16-inch steel wheels

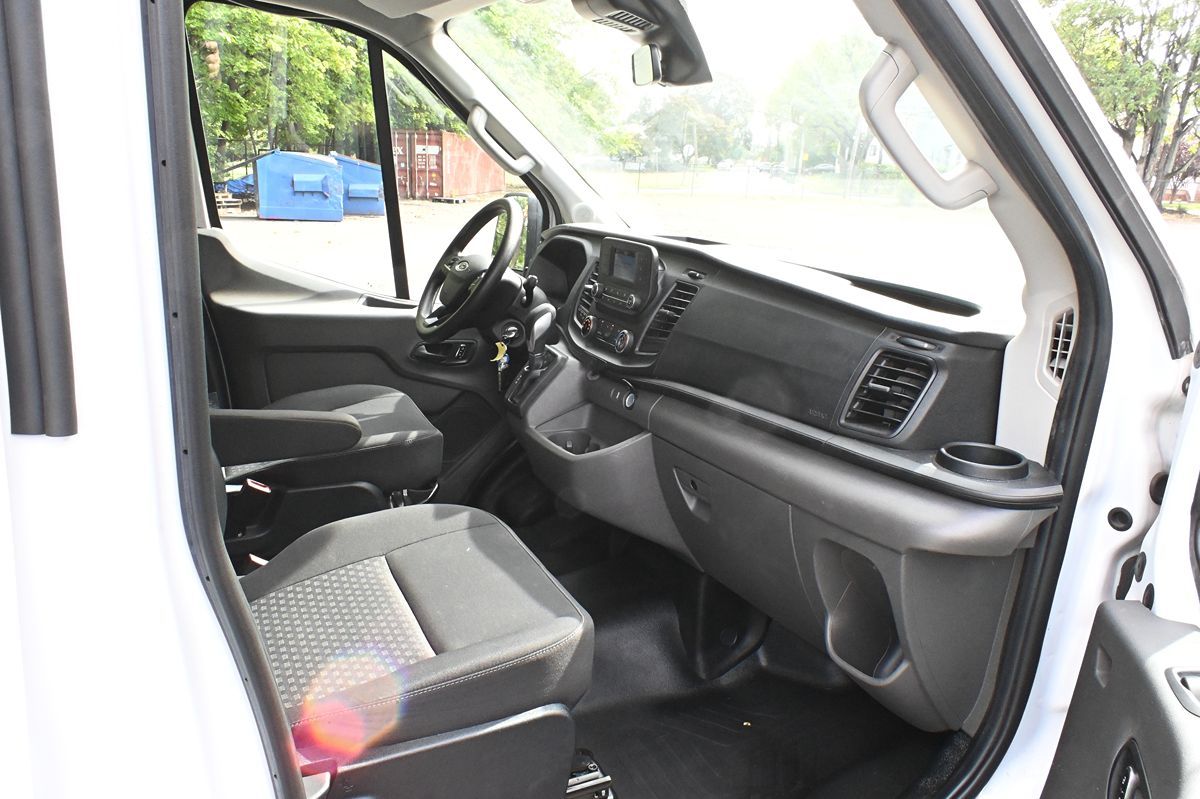

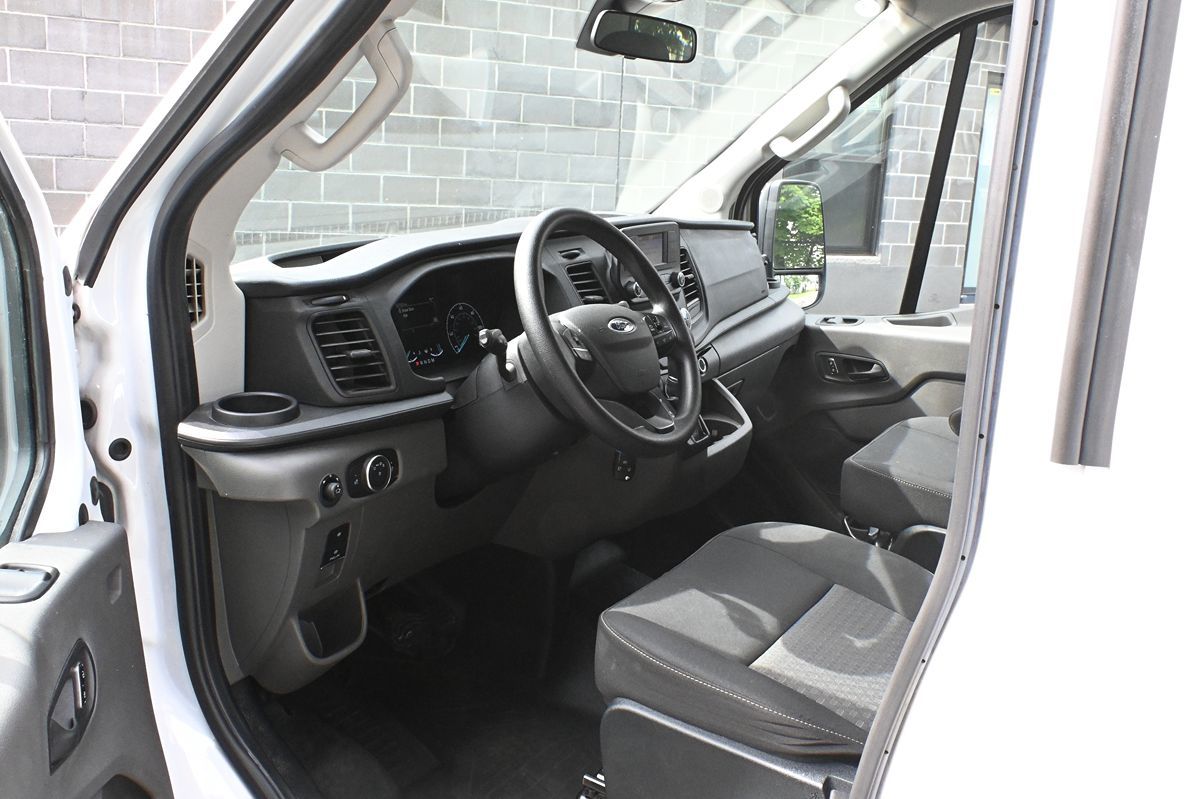

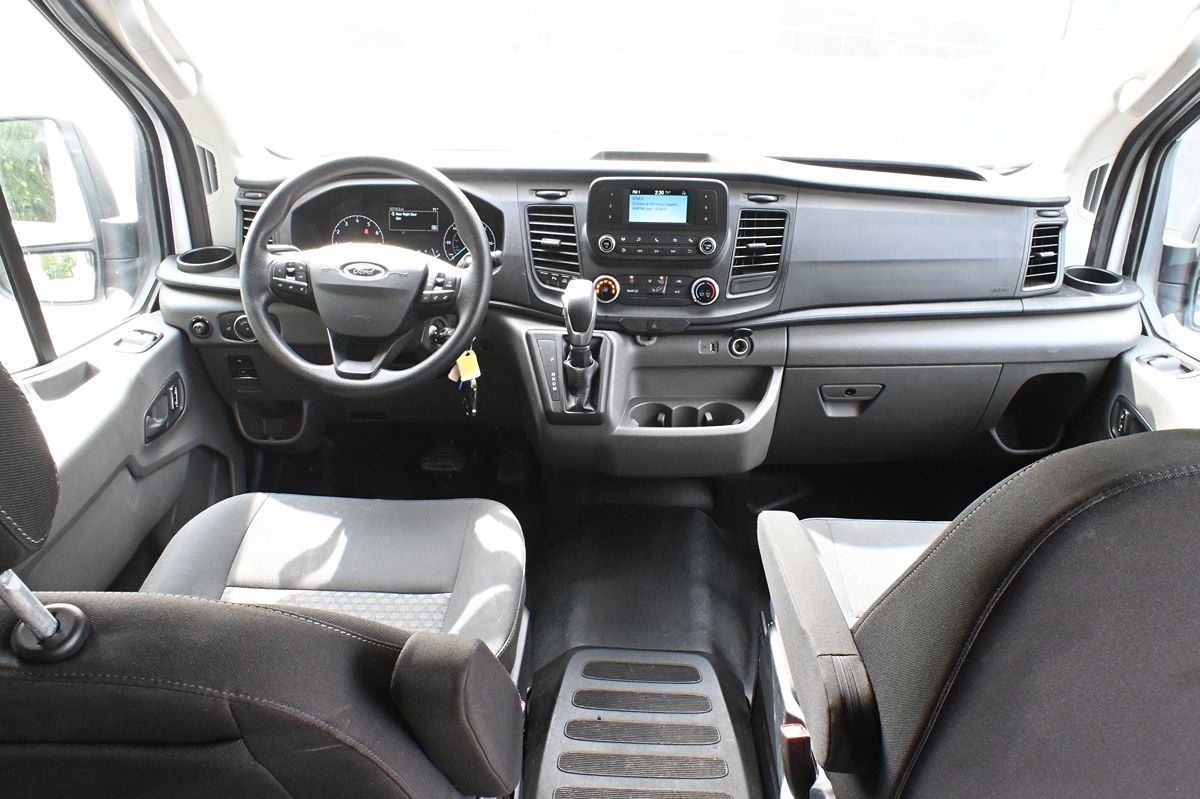

    Interior

    • Ebony/gray interior depending on selected seat trim

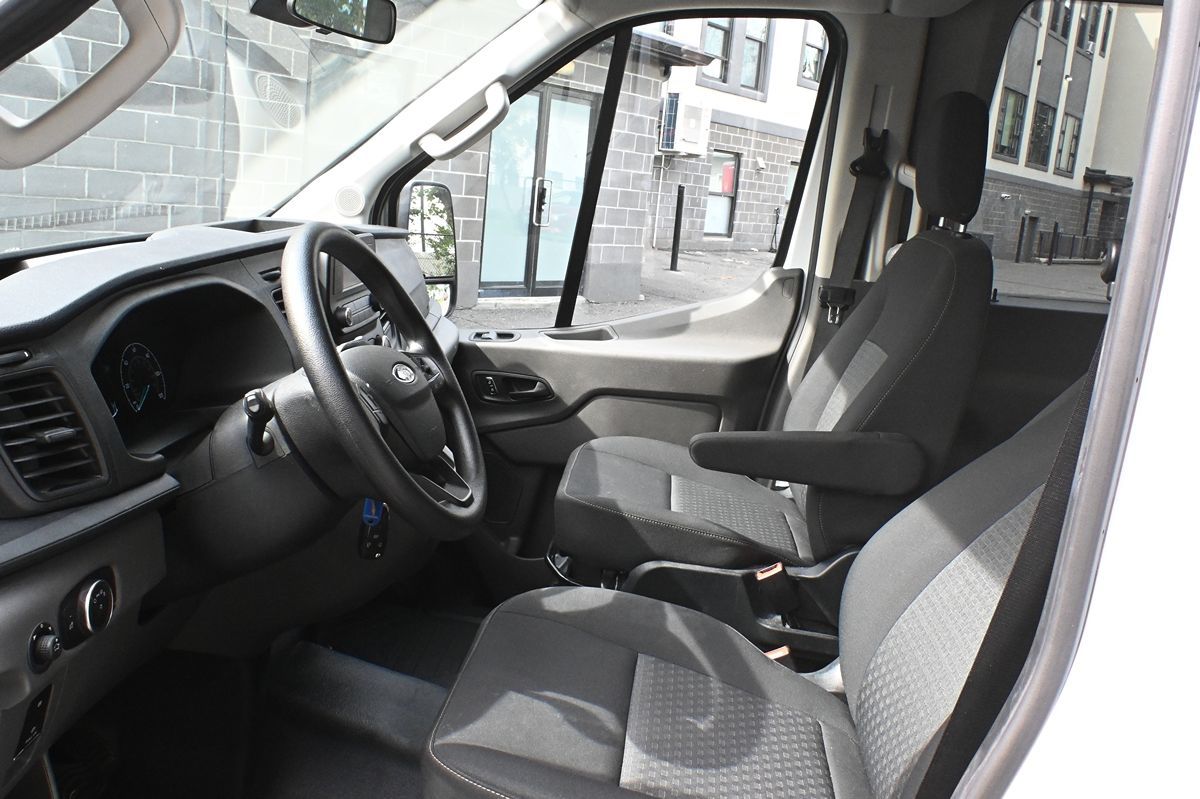

    • Front bucket seats
    • Manual driver's seat
    • Manual passenger seat
    • Driver lumbar adjustment
    • Vinyl or cloth passenger seating depending on option
    • Air conditioning
    • Power windows
    • Power locks
    • Remote keyless entry
    • Tilt/telescoping steering wheel

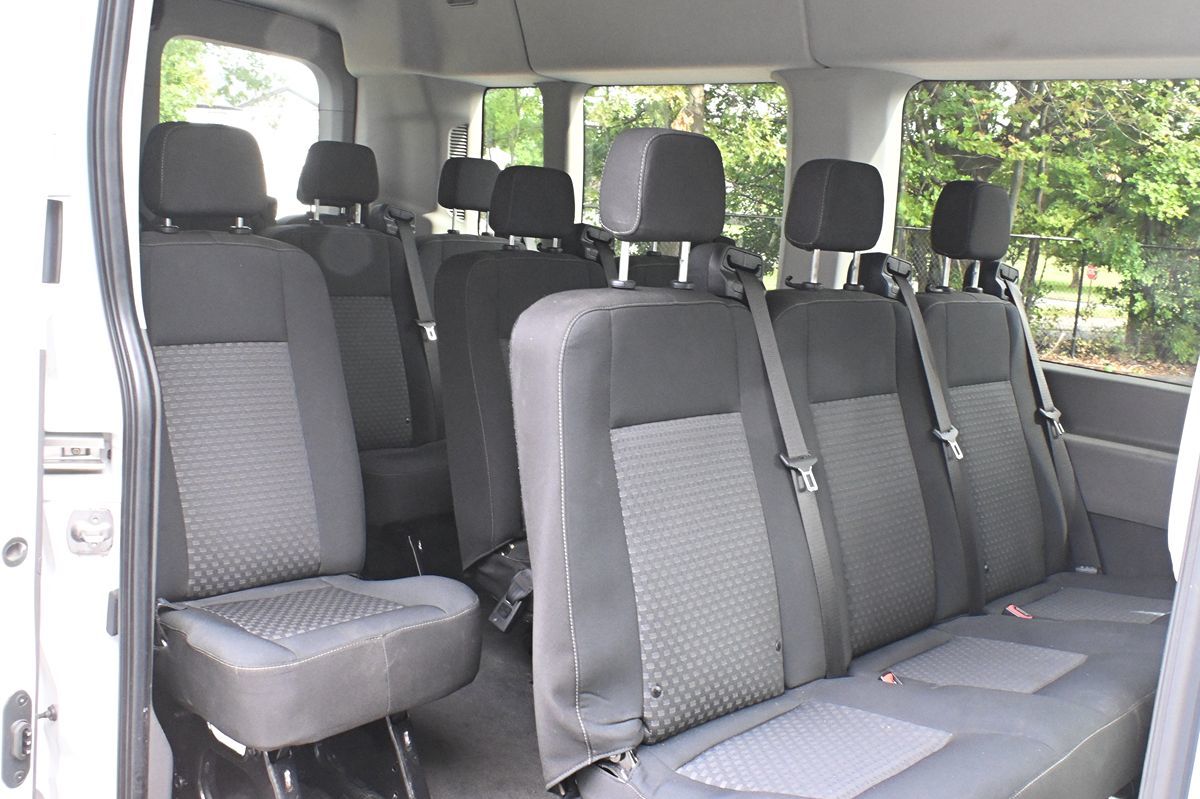

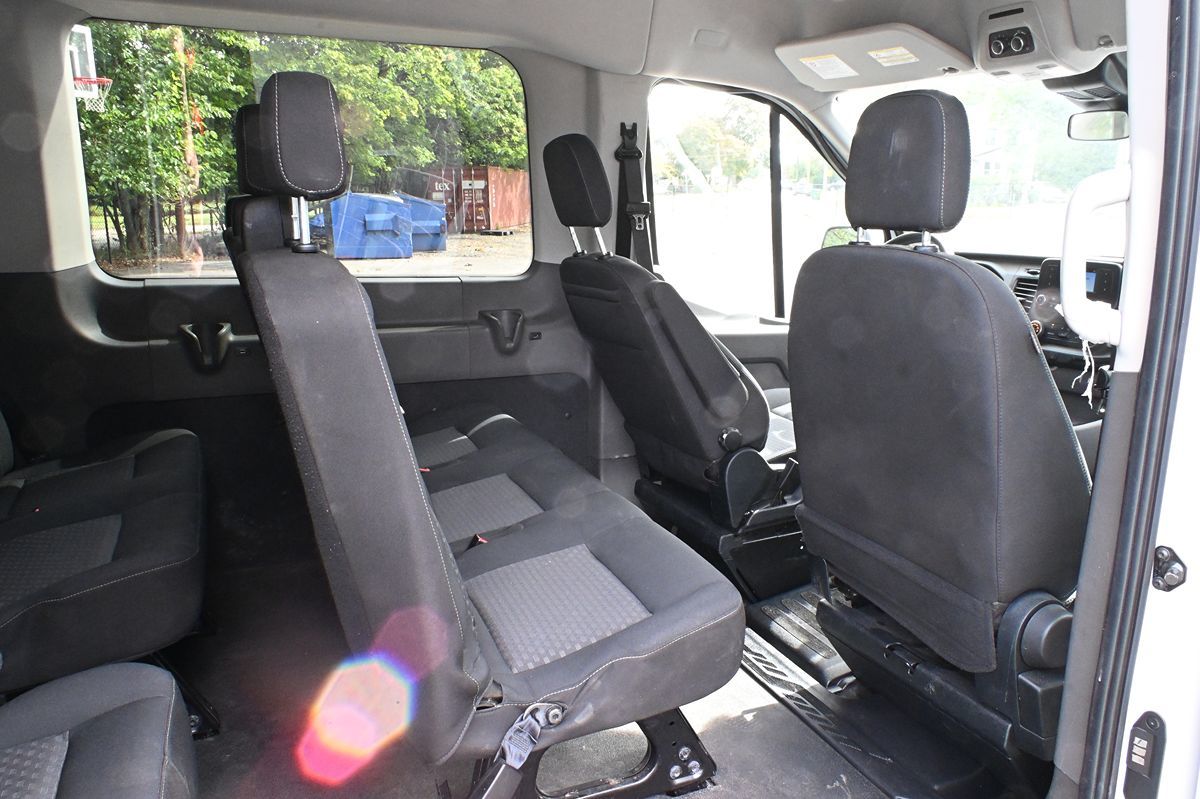

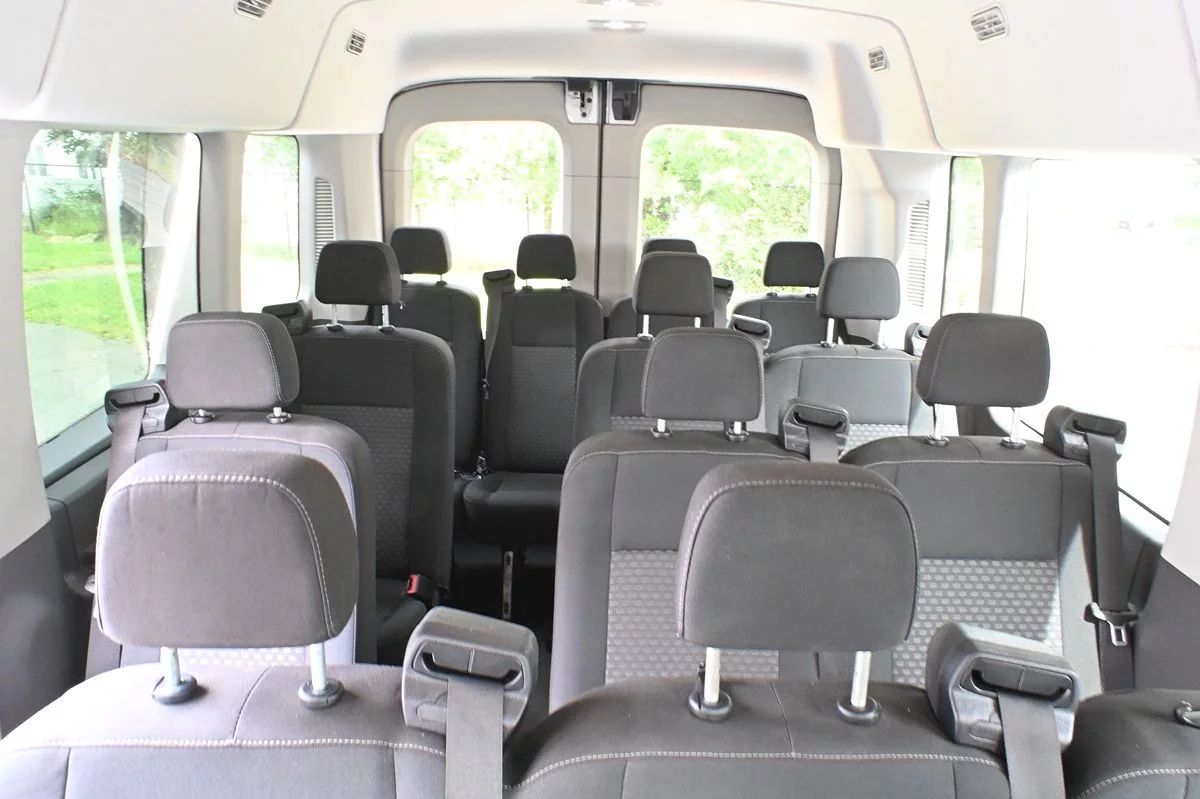

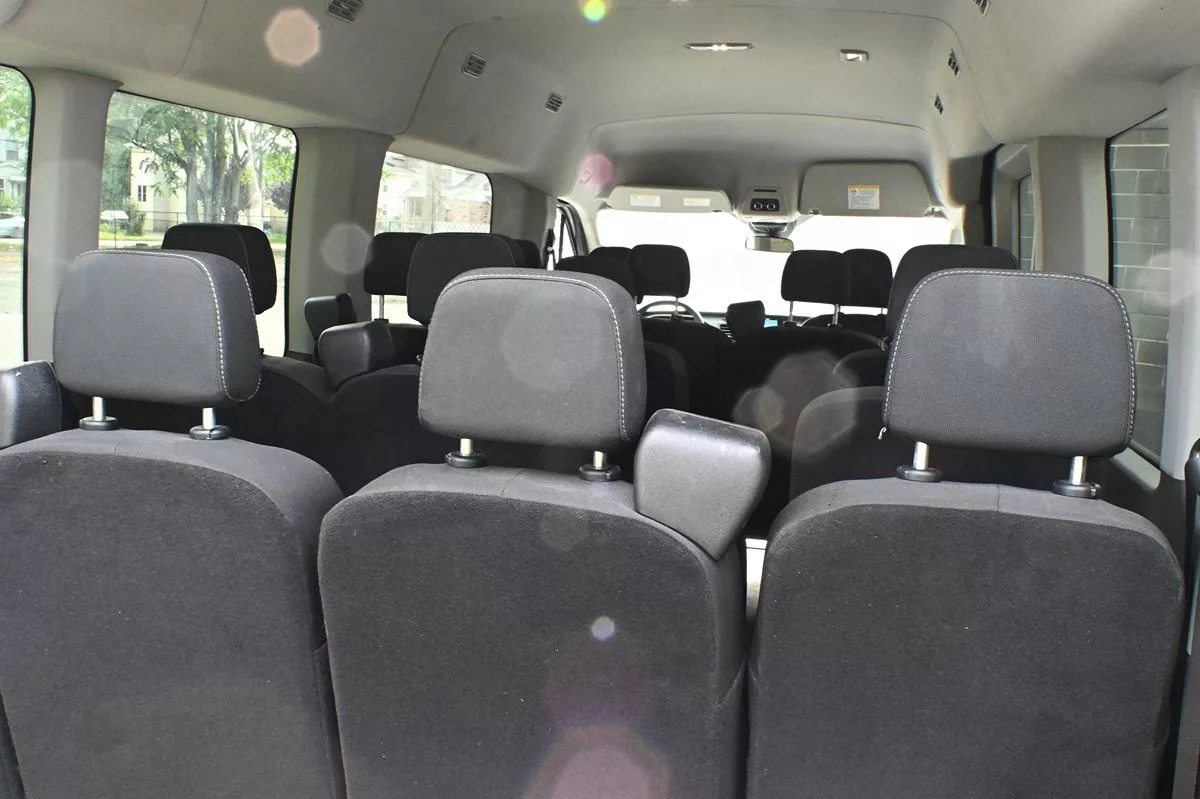

    • Multiple passenger rows
    • Overhead storage/console equipment depending on configuration

    Audio

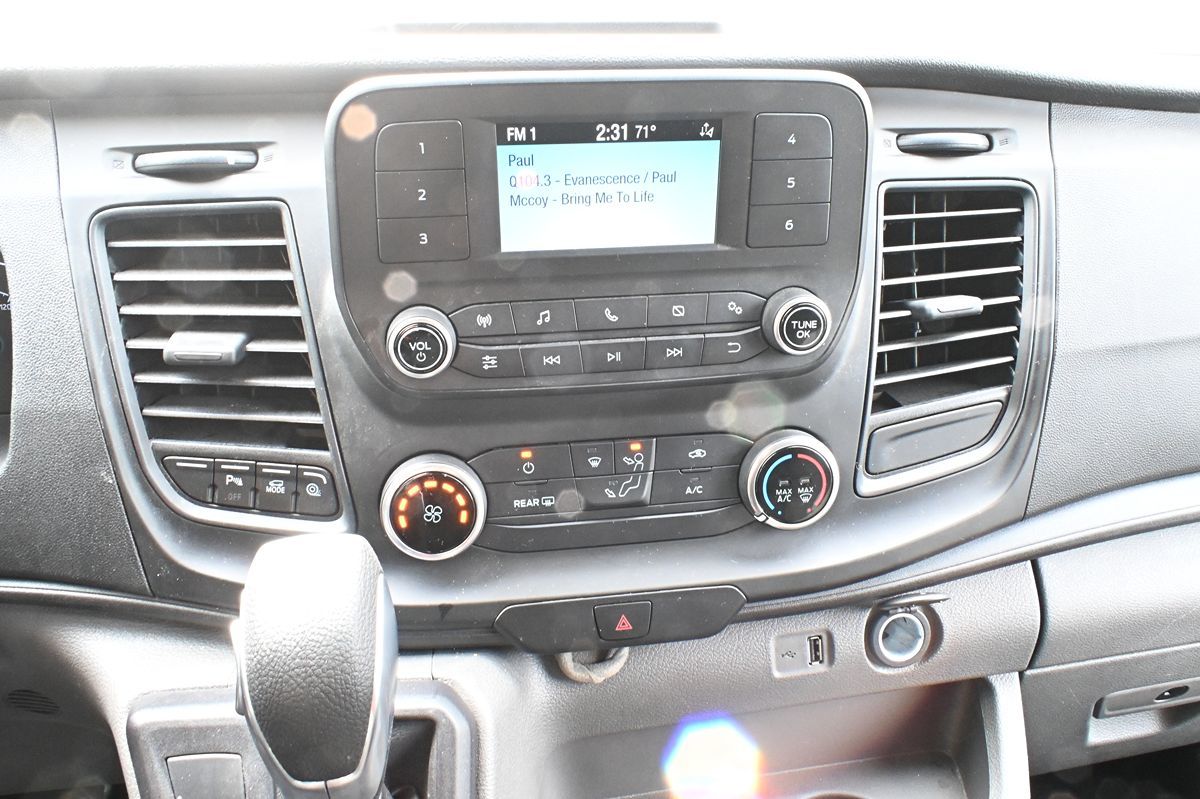

    The standard XL configuration used the basic AM/FM stereo with 4.0-inch multifunction display, Bluetooth and USB connectivity. Ford's order documentation specifies an 8-speaker arrangement on the applicable package.

  • Safety / driver assistance

    The 2023 Transit included Ford's safety systems including:

    • Pre-Collision Assist
    • Automatic emergency braking
    • Lane-Keeping System
    • Lane Departure Warning
    • Driver Alert
    • AdvanceTrac electronic stability control
    • Traction control
    • 4-wheel ABS
    • Tire-pressure monitoring
    • Front airbags
    • Front side airbags
    • Side-curtain airbags covering passenger rows
    • Rear parking assistance depending on equipment

    The exact parking/rear-sensing equipment is option-dependent.

    Available options included:

    • Cruise control
    • Adaptive cruise control
    • Rear parking sensors
    • Trailer brake controller
    • Intelligent Access/push-button start
    • Keyless-entry keypad
    • Additional remote keys
    • Upfitter Interface Module
    • Auxiliary fuse panel
